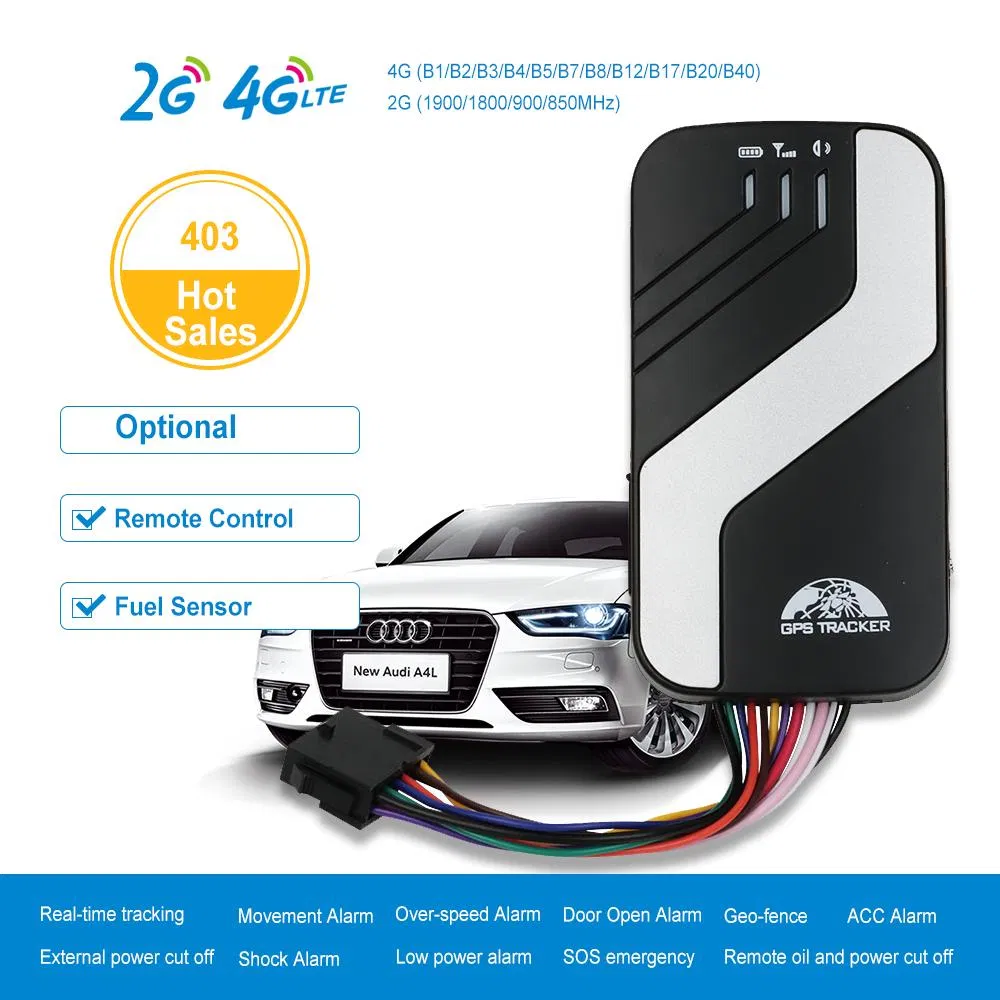

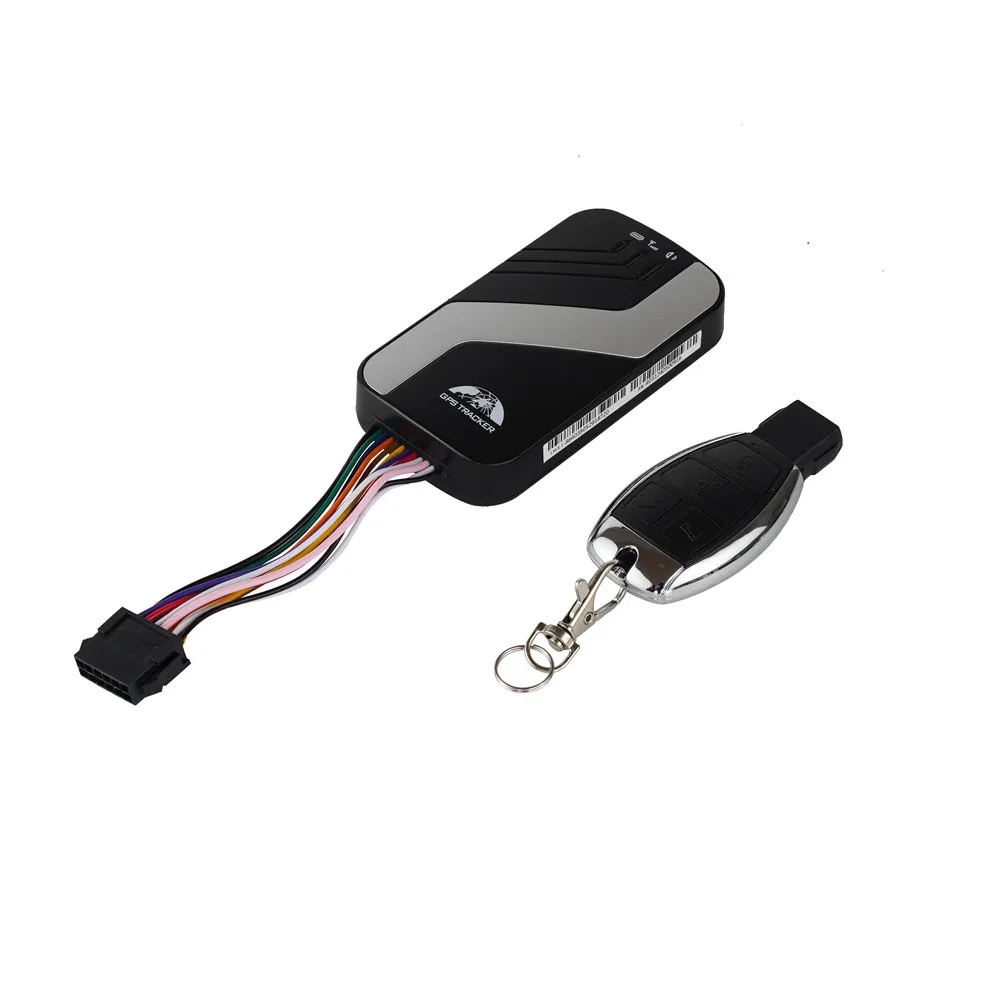

Anti-Lost Sos Security Alarm Car GPS Small GPS Tracker 4G LTE Tk403
Product Description
📊
Basic Information
Model NO.
GPS-403
Certification
FCC, CE
Warranty
1 Year
Frequency Band
4G (B1/B2/B3/B4/B5/B7/B8/B28/B40)

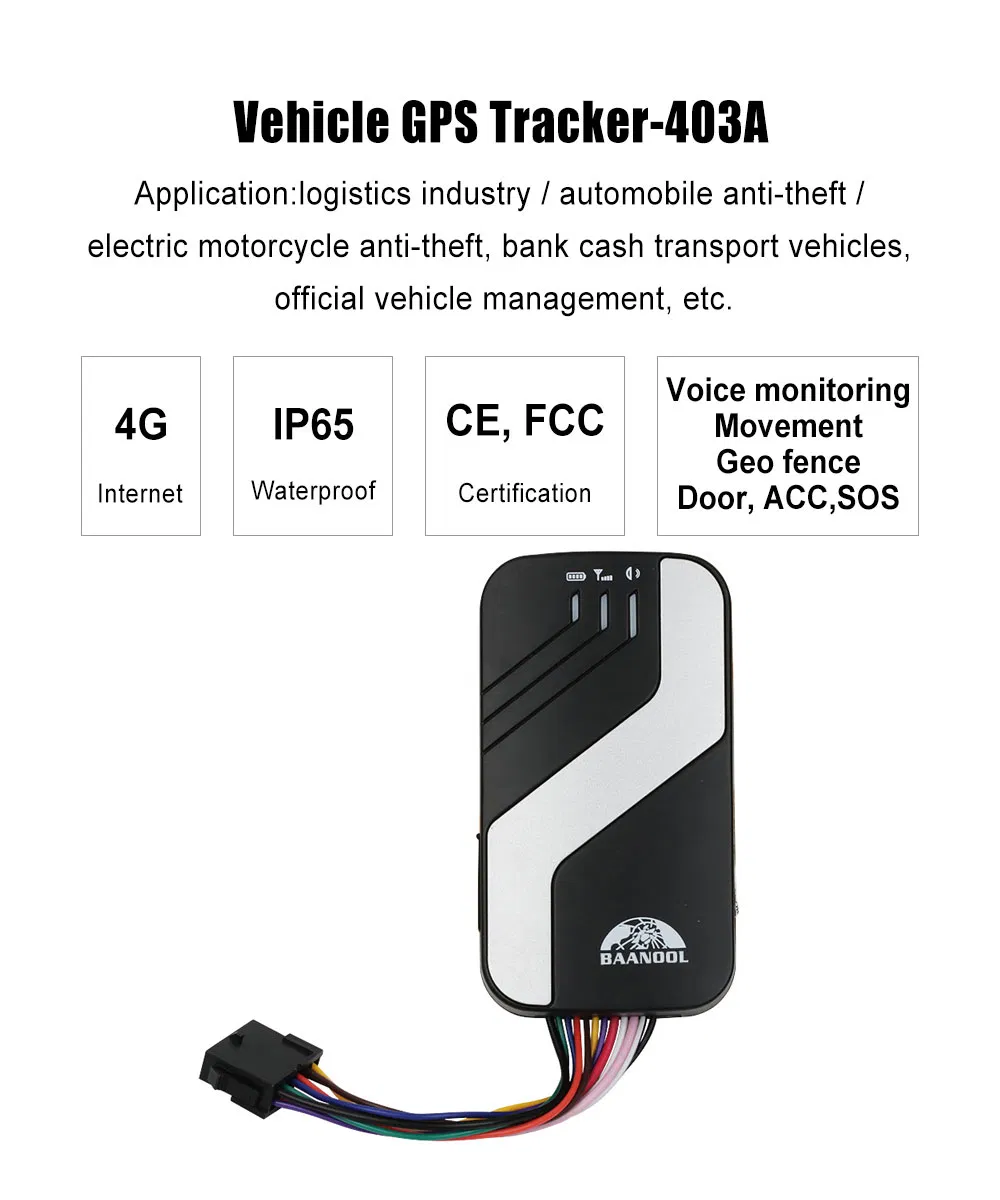

Application
Vehicle Fleet/Logistics/Rental (12-24V)
Main Features
Oil Cut, Door/ACC/Over Speed/Geo Fence Alarm
Type
GPS Tracker
Operating Principle
GPS Satellite Positioning & Data Transmit by GSM
🛡️
Anti-Lost SOS Security 4G LTE GPS Tracker
Summary
This product is based on the GSM / GPRS network and GPS satellite positioning system. It integrates anti-theft alarm, positioning, first aid and tracking functions in a new product that can locate and manage remote targets through SMS text messages, mobile app, and web platform.
🚀 Key Features
- Built-in GSM, GPS antenna, small size, elegant design.
- Support GPS and LBS (Location based service) dual tracking.
- Data transfer via SMS, GPRS and Internet.
- Support remote configurations.
- Support Firmware Over-The-Air (OTA) updates.
⚙️
Technical Specifications
| Product Name | LTE wireless data terminal |
| Model | 403 |
| Dimensions | 9.6 × 5.3 × 1.8cm |
| Weight | 70g |
| Network | GSM/GPRS/LTE |
| Frequency Bands | 4G (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B40); 2G (1900/1800/900/850 MHz) |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | 5m |
| Power Input | 12V-24V |
| Battery | Chargeable changeable 3.7V 300mAh Li-ion battery |
| Operating Temp. | -20°C to +65°C |
🛠️
Main Functions
1Changing password
2Authorization
3Single tracking
4Continuous interval tracking
5Smart angle updating
6GPS drift suppression
7Exact street address
8LBS / Cell-ID tracking
9Auto answer
10SMS forwarding
11SIM Card Balance Enquiry
12ACC ON/OFF Alert
13Remote immobilizing (Fuel/Power Cut)

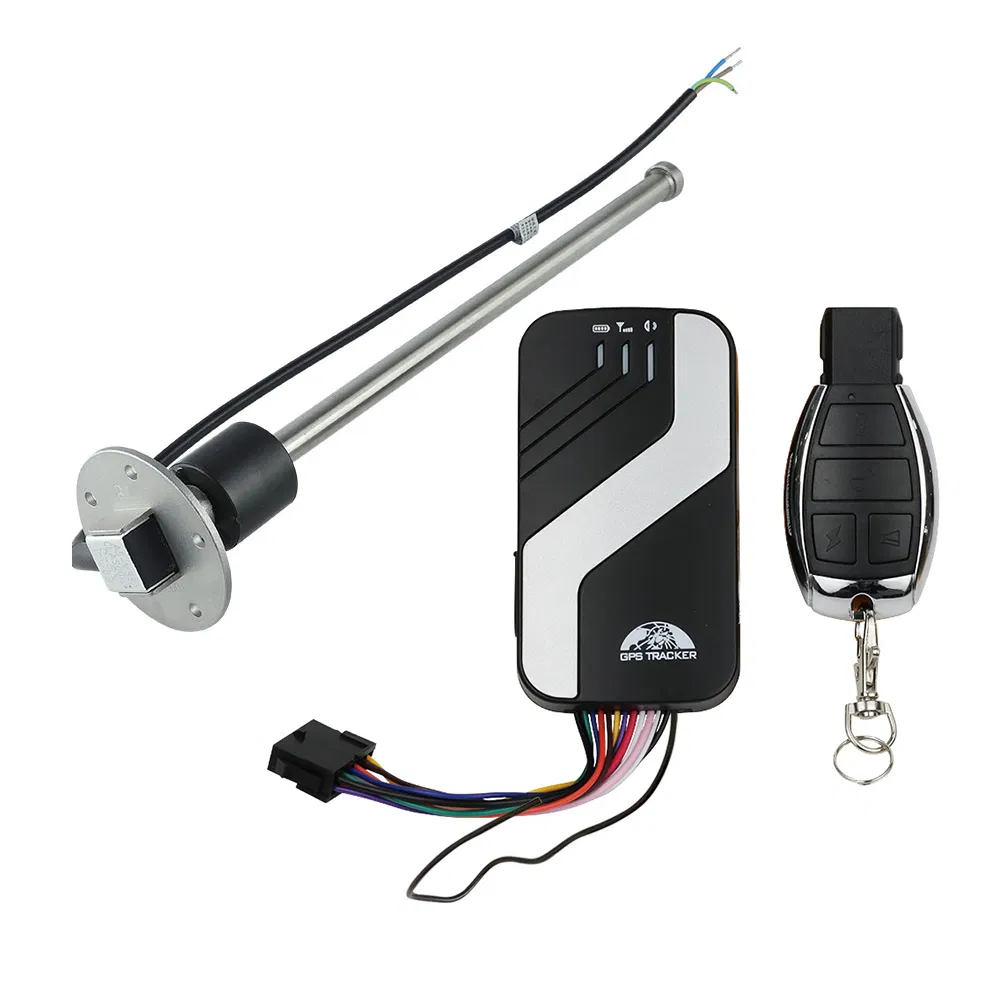

14Fuel sensor calibrating
15Multi-Alarms: Low battery, SOS, Geo-fence, Movement, Over-speed, Fuel alarm
16Sleep Mode & Heartbeat package
📍

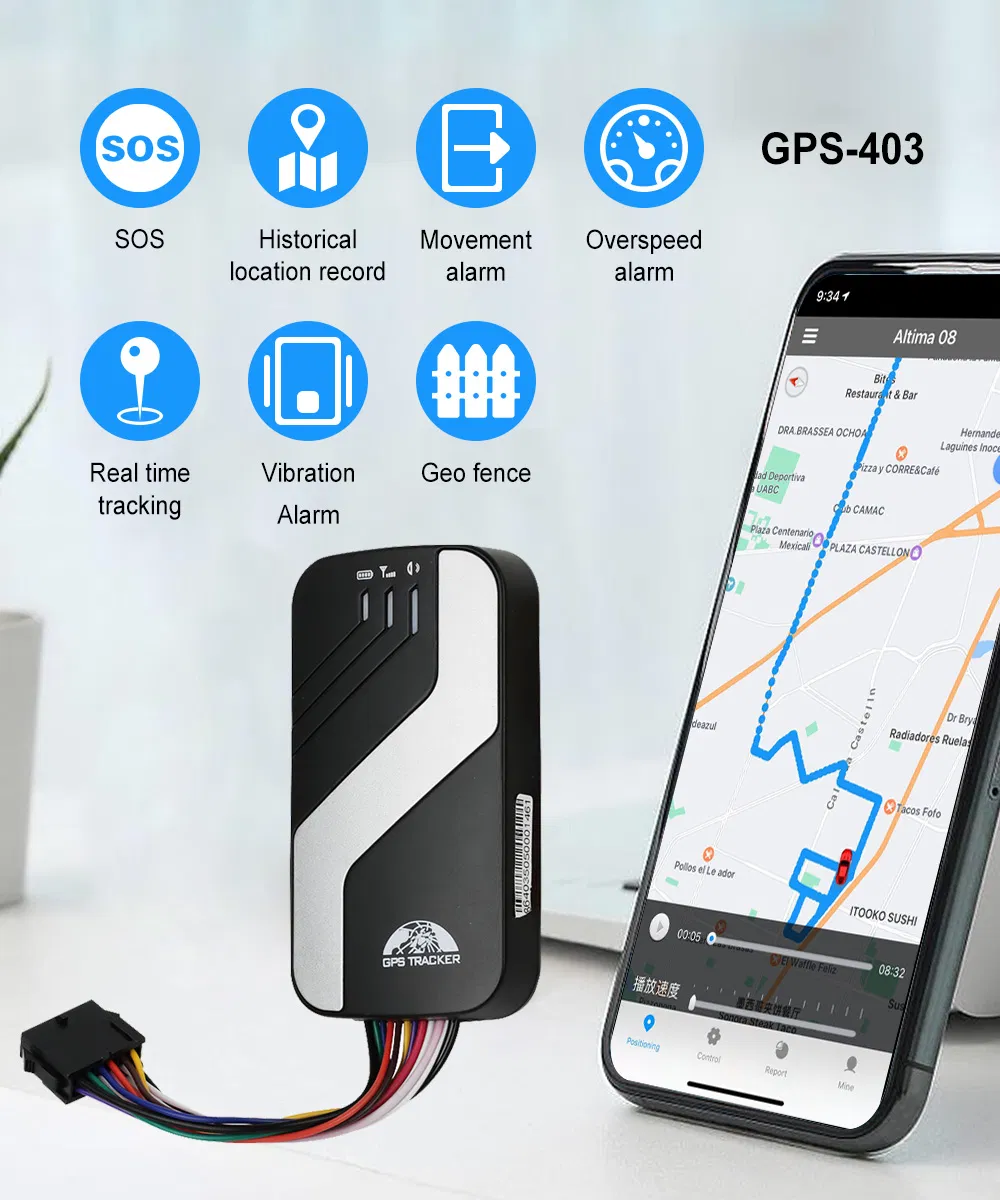

How to track the GPS-403?
The device supports phone tracking and 16 languages website tracking (English, Spanish, Portuguese, Arabic, Thai, Italian, German, French, etc.).
Way A: SMS + Google map link
Way B: Real-time tracking via web-platform
Way C: Mobile APP: Baanool Iot (iOS & Android)
📦
Service & Warranty
Warranty Policy
- One year warranty for all models.
- Strict in-house quality check before packing.
- Secure packaging for international shipping.
OEM/ODM Service
- Customize logo and brand on device/box.
- Firmware modification services.
- Bulk order custom designs.
❓
Frequently Asked Questions
Q1: Does this tracker support 4G networks?
Yes, the GPS-403 supports 4G LTE bands (B1/B2/B3/B4/B5/B7/B8/B28/B40) and is backward compatible with 2G GSM networks.
Q2: Can I remotely stop the car engine?
Yes, it features a remote immobilizing function that allows you to cut off the fuel or power system via SMS or the App.
Q3: What is the tracking accuracy of this device?
The device provides high-precision positioning with a GPS accuracy of approximately 5 meters.
Q4: Is there a subscription fee for the tracking app?
Tracking can be done via SMS (cost of a text message) or through the Baanool IoT app and web platform. Please contact us regarding specific platform access.
Q5: Can it be installed on a 24V truck?

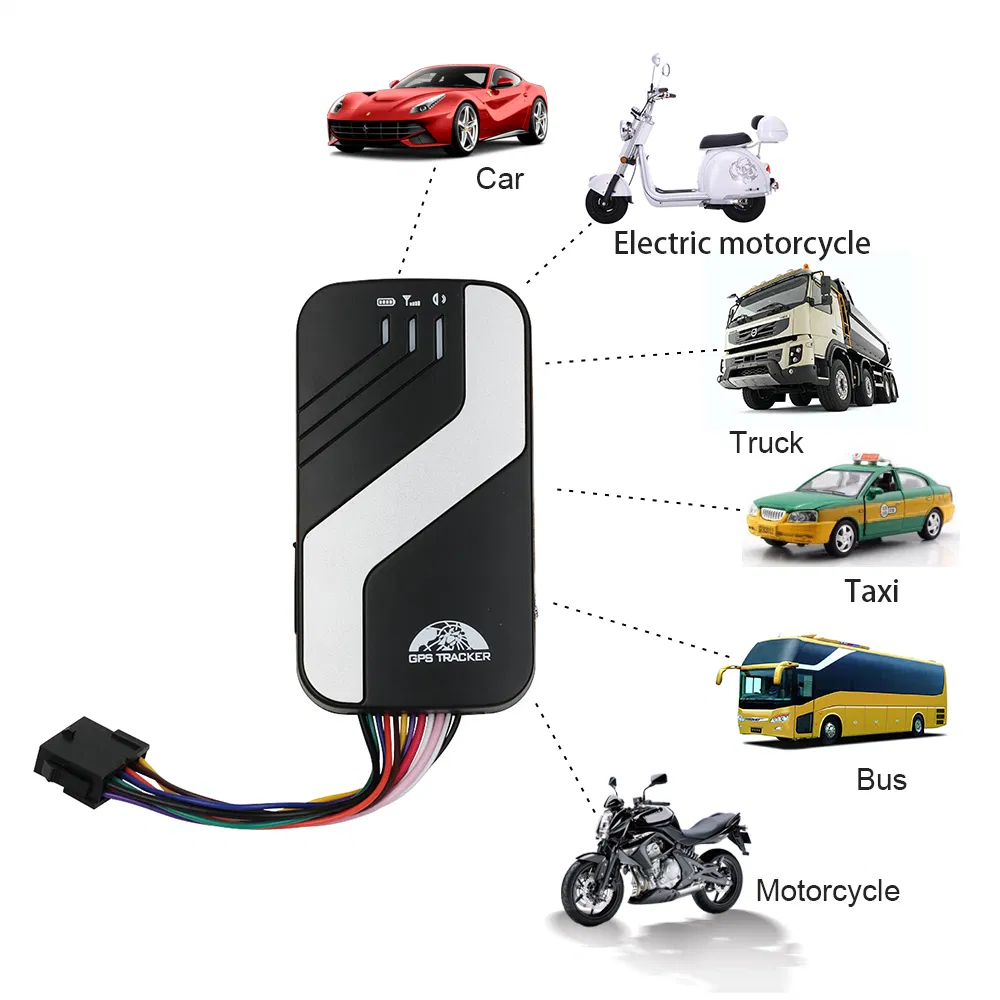

Absolutely. The device supports a wide input voltage range from 12V to 24V, making it suitable for cars, motorcycles, and large trucks.
Q6: How does the SOS function work?
When the SOS button is pressed, the tracker sends a help message and the real-time location to authorized phone numbers.
