China 12-15kw Growatt Carton 425/387/178mm Solar Power Inverter with Factory Price Mod 10-15ktl3-X
Product Description
⚡
Basic Info.
Model NO.
MOD 10-15KTL3-X
Nature of Source Flow
Active Inverter
Phase
Three
Output Power
12-15kw
Certification
CE, ROHS, TUV, VDE
Type
DC/AC Inverters
Power Source
Solar Power, Wind Power
Nature of Wave String
Sine Wave Inverter
Transport Package
Carton
Specification
425/387/178mm
Origin
China
HS Code
8504403090
Production Capacity
10000PCS Per Month
📋
Product Description
⚙️
Technical Specifications
| Datasheet | MOD 10KTL3-X | MOD 11KTL3-X | MOD 12KTL3-X | MOD 13KTL3-X | MOD 15KTL3-X |
|---|---|---|---|---|---|
| Input data (DC) | |||||
| Max. recommended PV power | 15000W | 16500W | 18000W | 19500W | 22500W |
| Max. DC voltage | 1100V | ||||
| Start voltage | 160V | ||||
| MPPT voltage range | 140V-1000V | ||||
| Max. input current per MPPT | 13A | 13A | 13/26A | 13/26A | 13/26A |
| Output data (AC) | |||||
| AC nominal power | 10000W | 11000W | 12000W | 13000W | 15000W |
| Max. output current | 16.7A | 18.3A | 20A | 21.7A | 25A |
| AC grid connection type | 3W+N+PE | ||||
| Efficiency | |||||
| MAX. efficiency | 98.6% | ||||
| European efficiency | 98.1% | 98.1% | 98.2% | 98.2% | 98.2% |
| Protection devices | |||||
| DC Switch / Surge Protection | Yes / Type II | ||||
| Anti-islanding / Grid monitoring | Yes | ||||
| General data | |||||
| Dimensions (W/H/D) | 425/387/178mm | ||||
| Weight | 14kg | 14kg | 16kg | 16kg | 16kg |
| Protection degree | IP66 | ||||
🔍

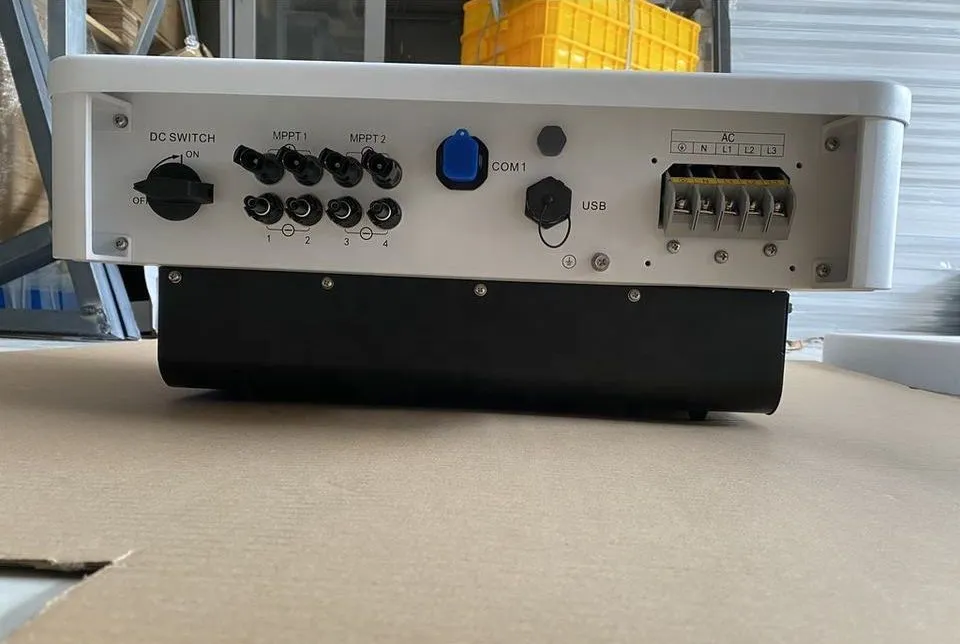

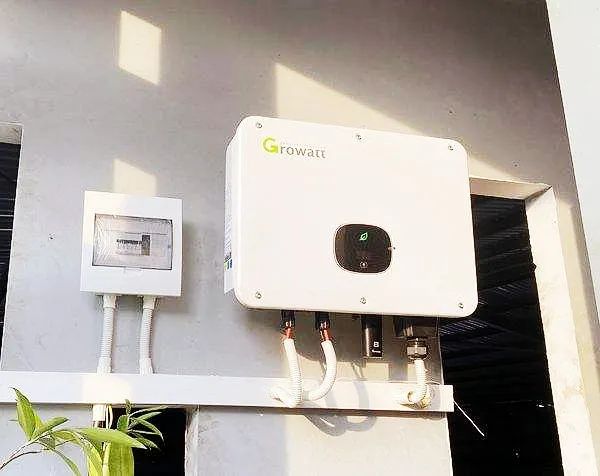

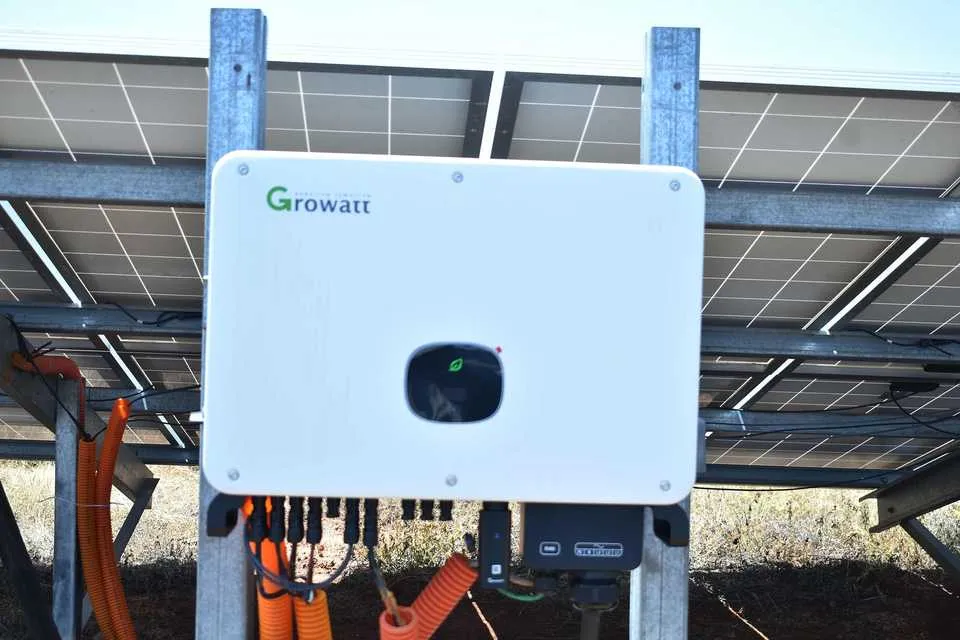

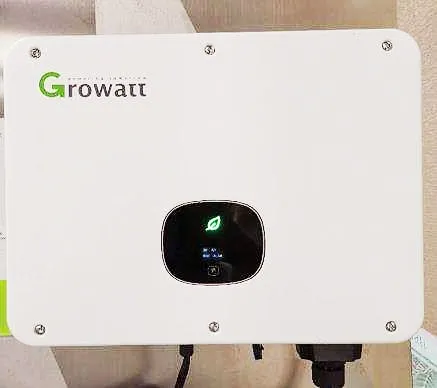

Product Details
📦

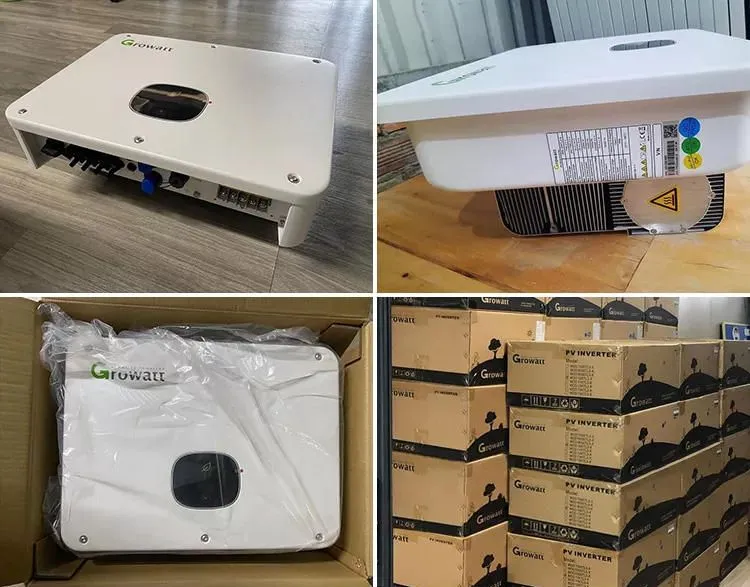

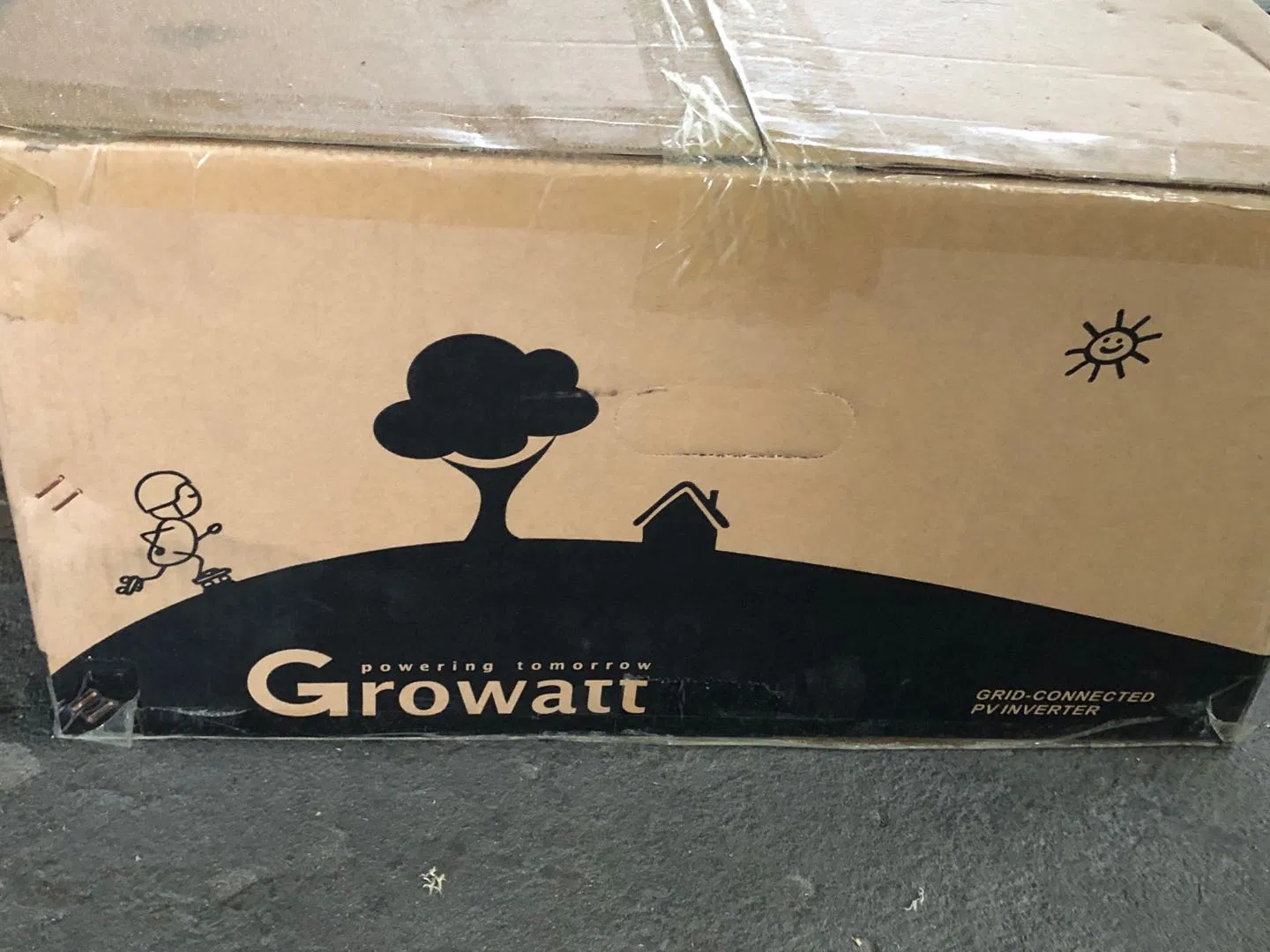

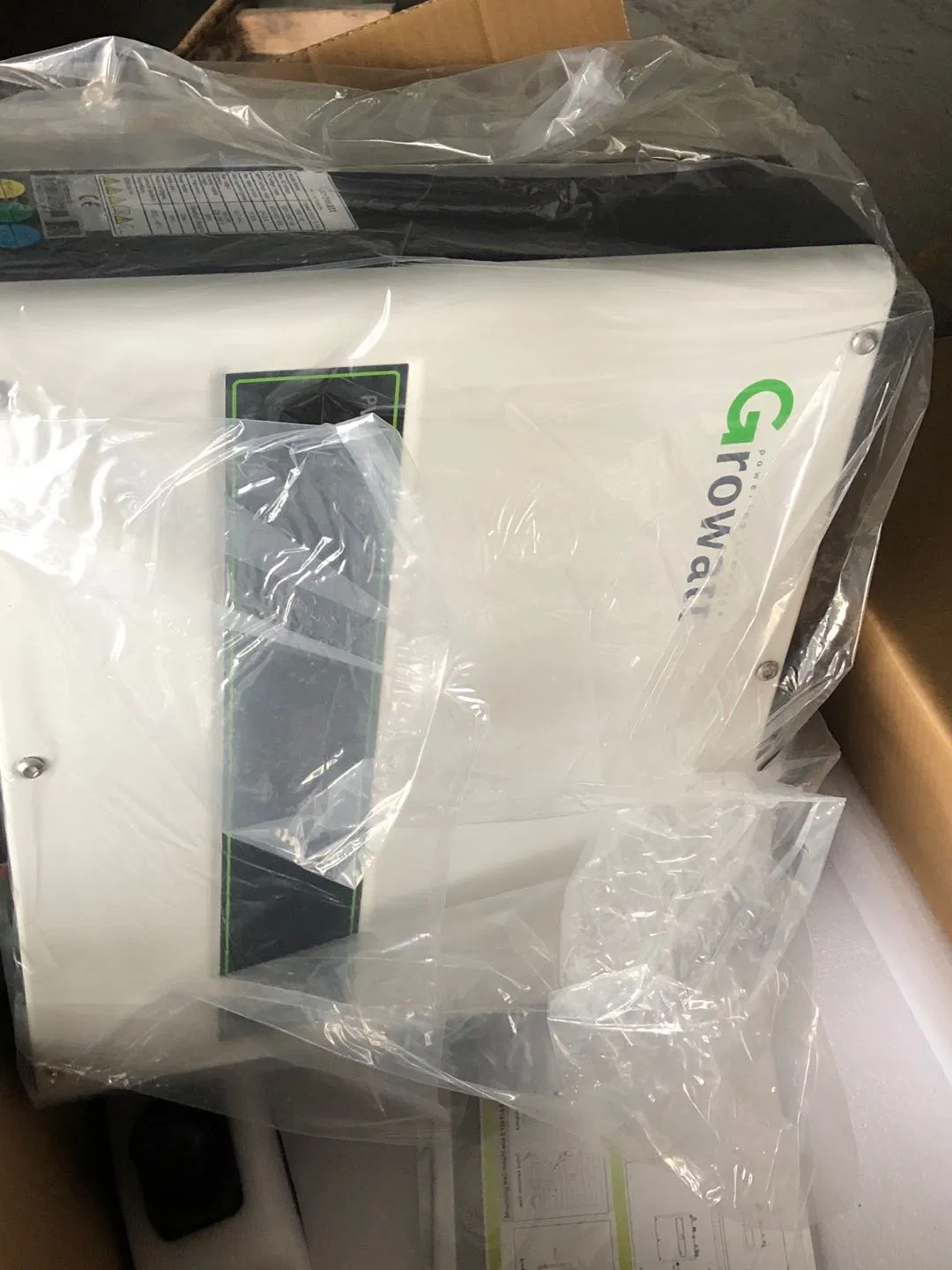

Packaging & Shipping
❓
Frequently Asked Questions
How can you guarantee the product quality?
We ensure quality through a rigorous process: always a pre-production sample before mass production and a final inspection before shipment.
What products can we purchase from your selection?
Our product range includes Solar Panels, Solar Systems, Batteries, Inverters, and Wi-Fi RTU components for comprehensive energy solutions.
Why should I choose these inverters over other suppliers?
Our solutions focus on high efficiency (up to 98.6%), advanced IP66 protection, and versatile MPPT tracking, backed by years of professional expertise in PV module sales and system maintenance.
What delivery terms and payment currencies are accepted?
We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. Accepted payment currencies include USD, EUR, and CNY.
What payment types and languages do you support?
Payment can be made via T/T, L/C, or PayPal. Our team provides services in English, Chinese, Spanish, Japanese, German, and Russian.
What is the warranty period for the inverters?
The standard warranty is 5 years, with an optional extension to 10 years available for specific models and requirements.
