Detergent Powder Production Line Milk Powder Dry Herb Vaporizer Atomizer Spray Dryer
Product Description
Technical Specifications
Model NO.LPG150
TypeSpray Drying Equipment
ApplicationPowder
FuelGas
PressureVacuum
ConditionNew
Evaporation150 Kg/H
Outlet Temp80-100 ℃
OriginChina
HS Code8419399090

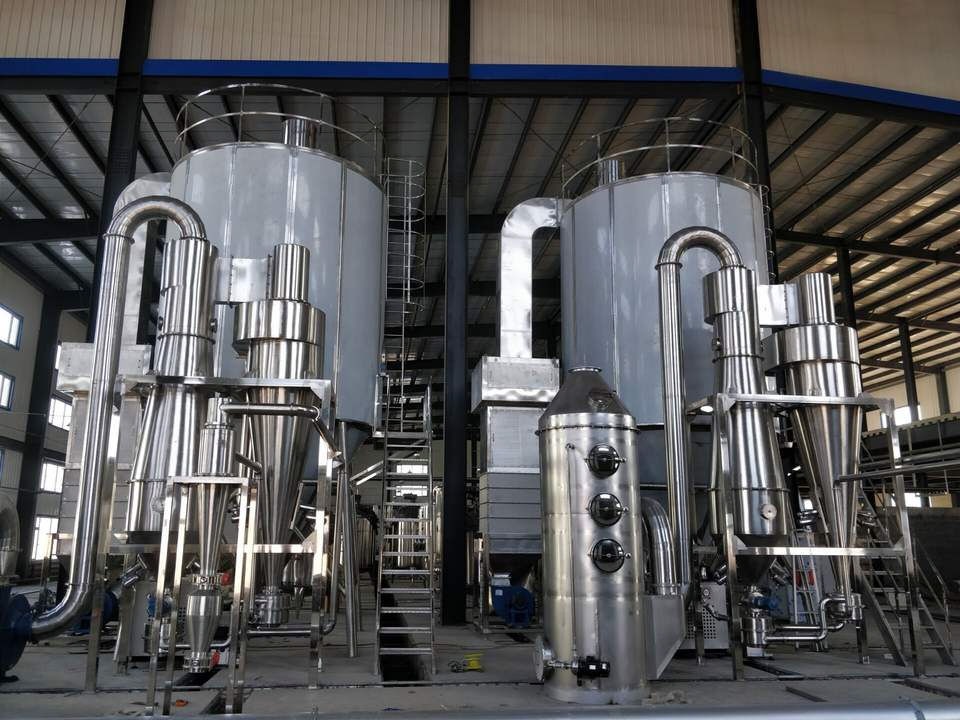

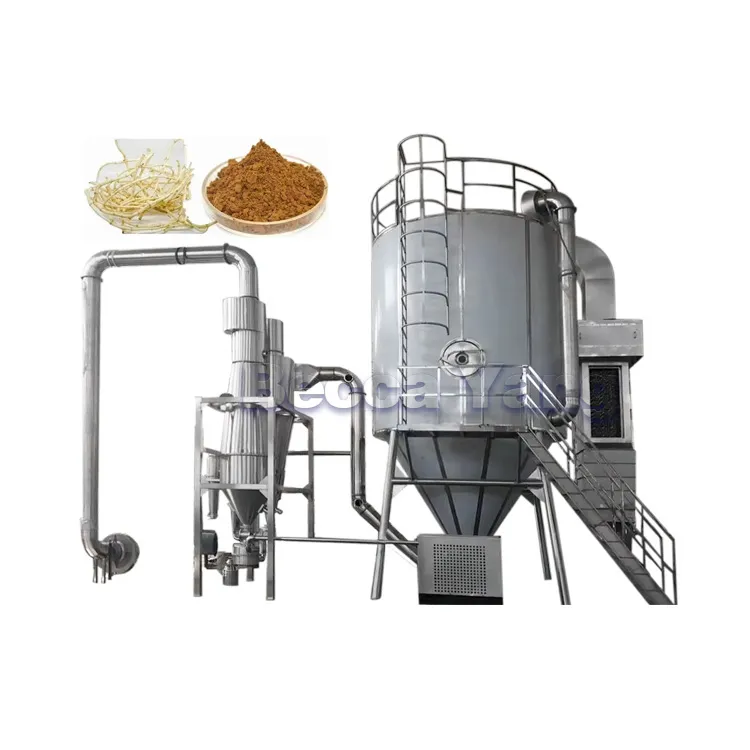

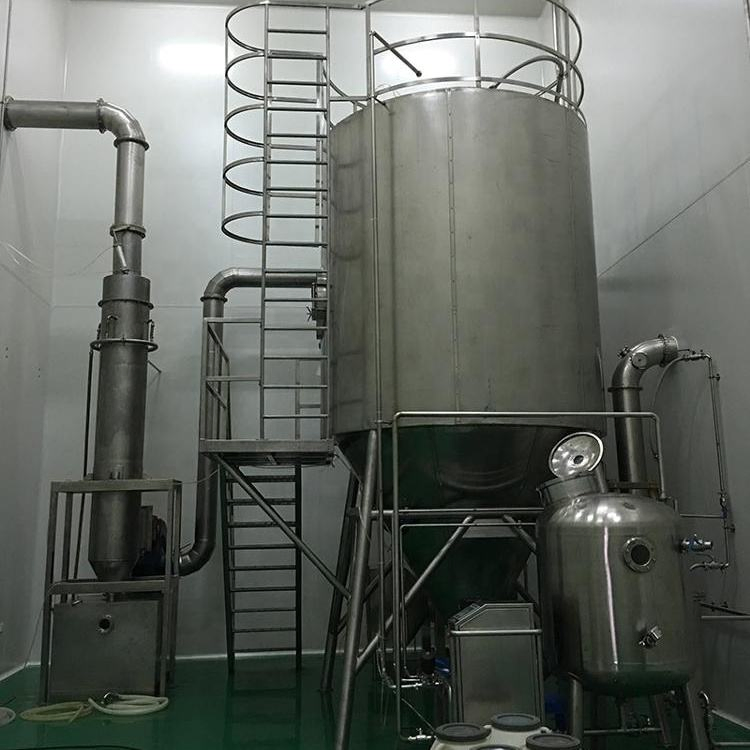

High Speed Atomizer Centrifugal Spray Dryer
This centrifugal spray dryer is a kind of continuous atmospheric pressure dryer. Using a pneumatic or electric atomizing device, liquid material is sprayed into mist beads at high speed, drying instantly upon contact with hot air. It is widely used in electronics, ceramics, food, medicine, and chemical industries.
Three-grade air filter: inlet air reaches one hundred thousand grade.
Wall cooling device: inner wall temperature remains below 80℃ to prevent burning.
3.5 times volume capacity compared to standard LPG models.
PLC control and touch screen system for real-time processing display.
CIP auto cleaning device available for rapid variety production.
Core System Features
🛡️

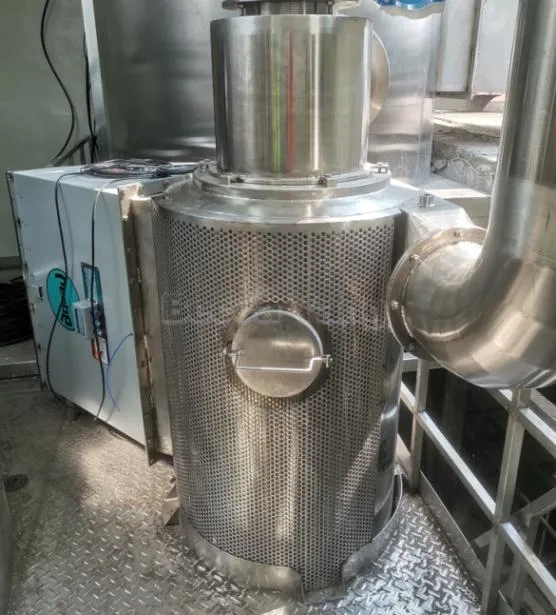

Explosion-proof System: Handles extreme situations of sudden fire or dust explosion. Equipped with automatic explosion relief plates on the top of the tower.
🧼

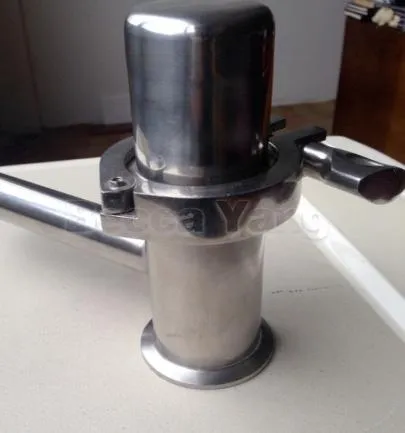

CIP Automatic Cleaning: Controlled by a programming system. Spray heads installed throughout the equipment ensure cleaning without dead ends.
♻️

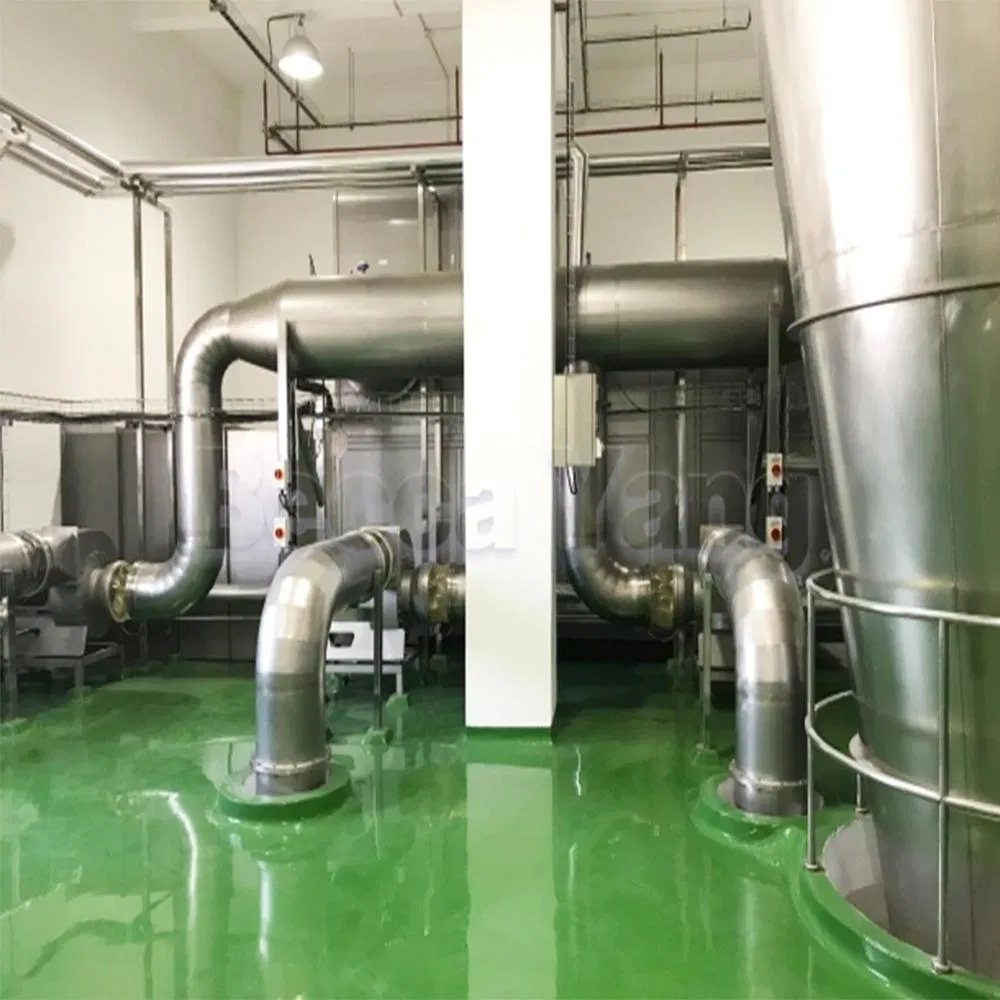

Exhaust Heat Recovery: Advanced superconducting technology saves energy costs and meets environmental emission requirements by recovering heat from exhaust.
Series Parameters
| Model | ZPG-25 | ZPG-50 | ZPG-80 | ZPG-100 | ZPG-150 | ZPG-200 | ZPG-300 |
|---|---|---|---|---|---|---|---|
| Evaporation (kg/h) | 25 | 50 | 80 | 100 | 150 | 200 | 300 |
| Process Liquid (kg/h) | 25-34 | 50-68 | 80-108 | 100-135 | 150-203 | 200-270 | 300-406 |
| Electric power (kw) | 63 | 99 | 132 | 153 | 204 | 246 | 330 |
| Inlet Temp (ºC) | 160-220 | ||||||
| Outlet Temp (ºC) | 80-100 | ||||||
Wide Range of Applications
Food Industry
Whole milk powder, cocoa, instant tea, seasoning meat, soybean, glucose, fruit pulp.
Detergent Industry
Washing powder, soap powder, baking soda, whitening agents.
Chemical Industry
Catalysts, vulcanizing agents, humates, and various chemical raw materials.

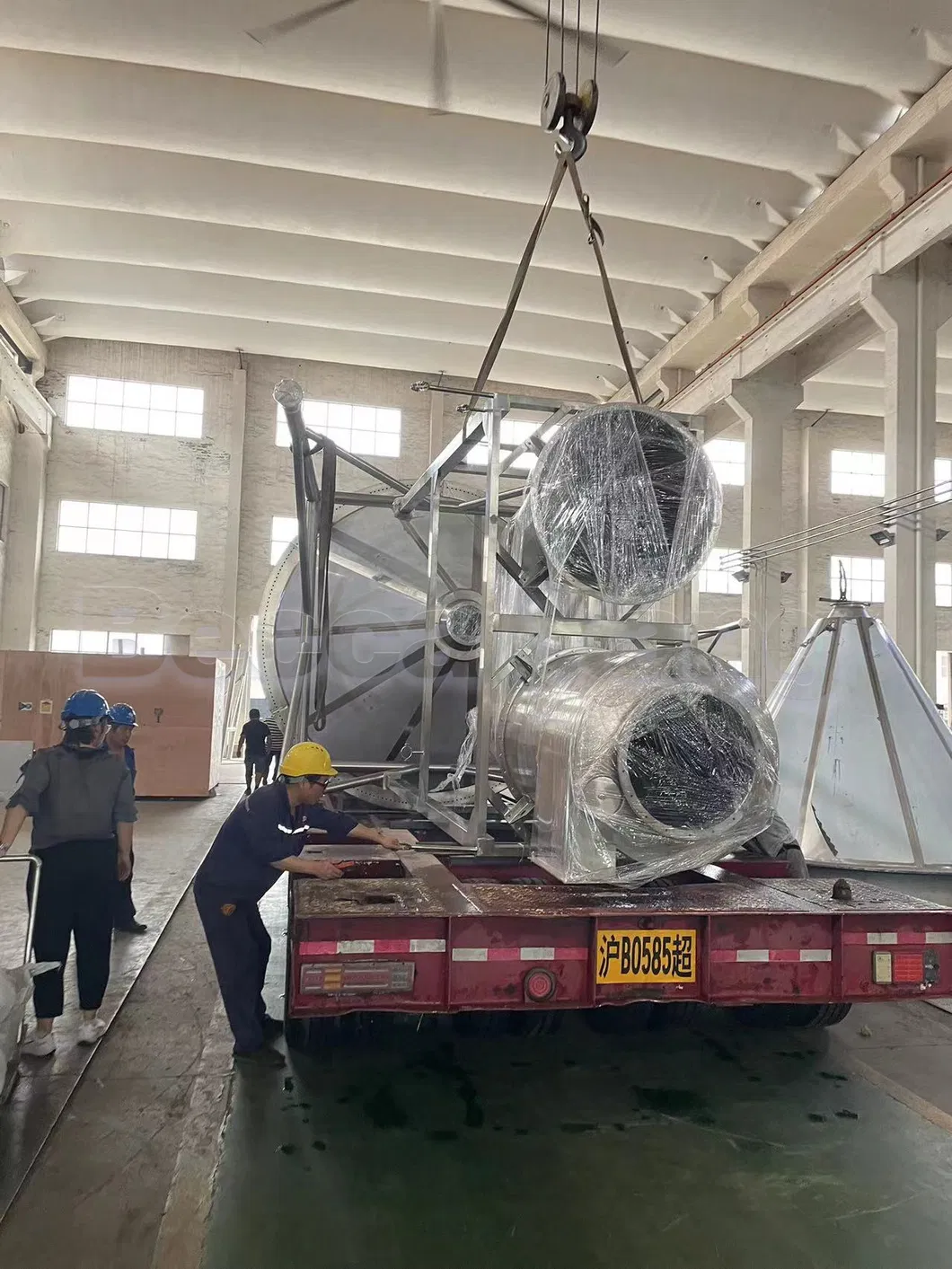

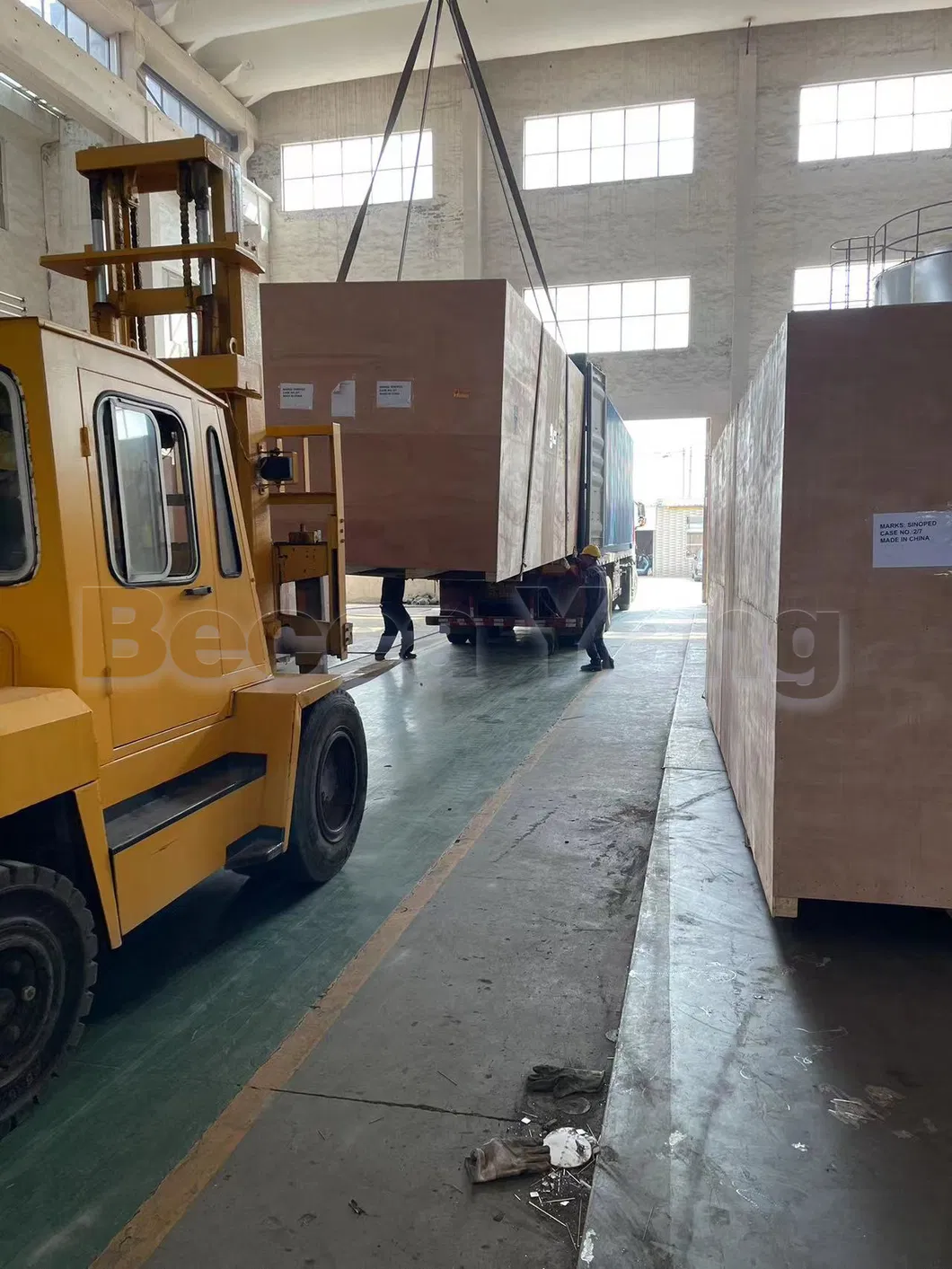

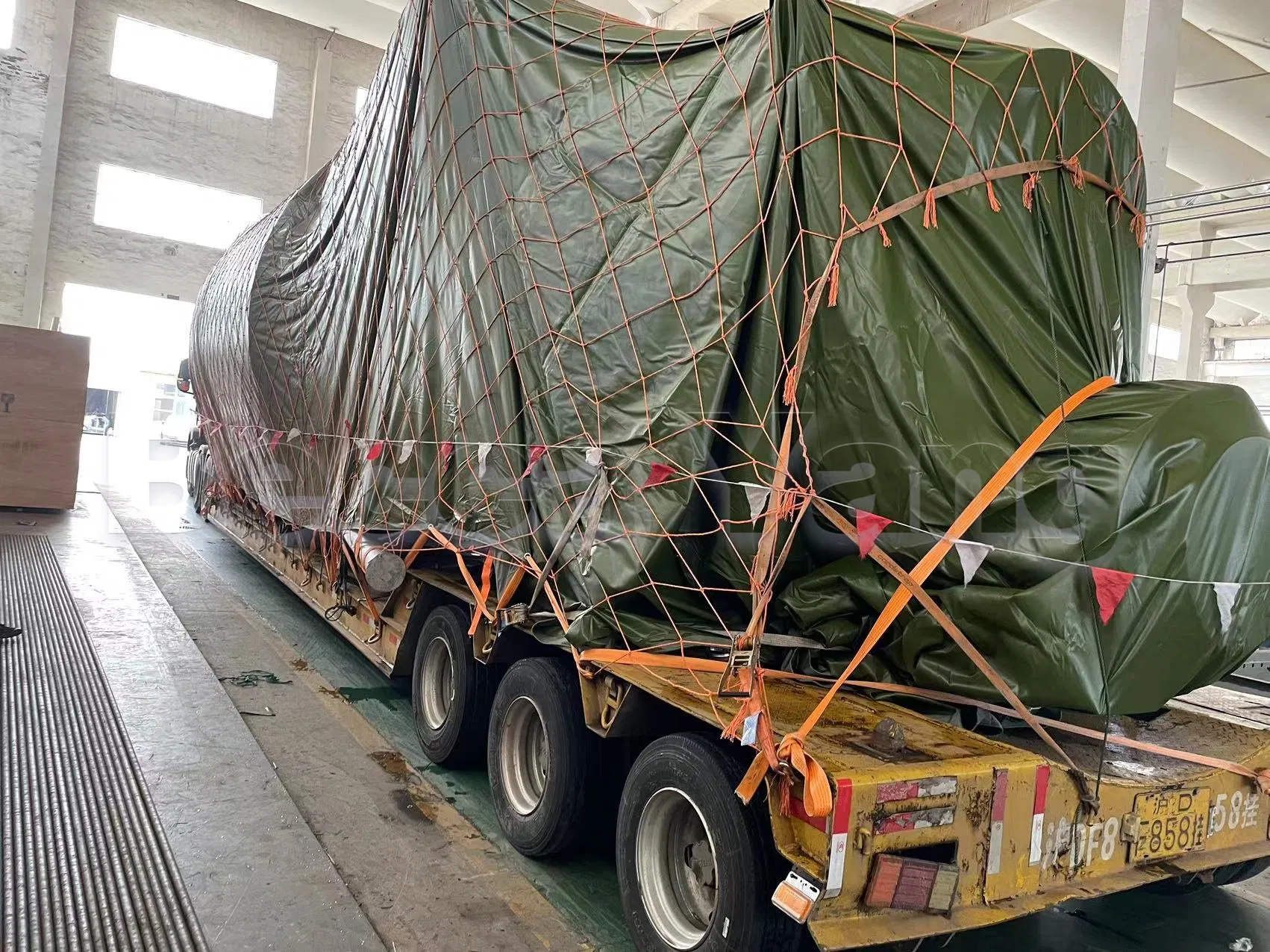

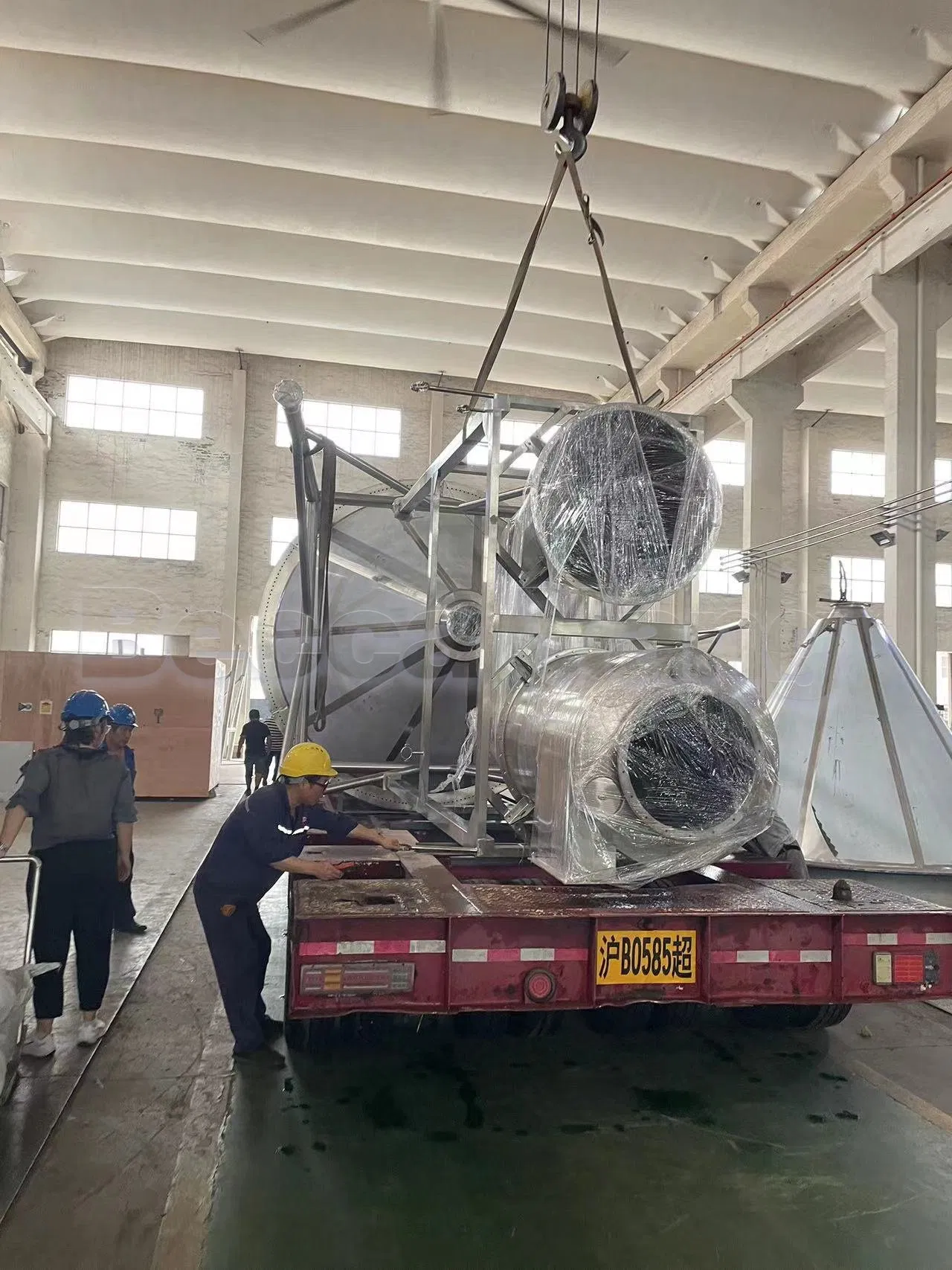

Packing & Logistics
Inquiry Checklist
To provide an accurate quote, please include the following in your inquiry:
- Raw material characteristics (corrosive, basicity, or acidity).
- Initial and final moisture requirements.
- Maximum heat temperature tolerance of the material.
- Preferred fuel source (Natural gas, electricity, oil, or steam).
- Preferred material (SUS304, SUS316L, or Carbon steel).
- Local power info (Voltage, Phase, Hz).
Frequently Asked Questions (FAQ)
What materials can be dried using this equipment?
The centrifugal spray dryer is versatile and used for food (milk powder, juices), detergents (washing powder), and chemicals (catalysts).
How does the CIP system work?
The CIP (Clean-in-Place) system uses programmed spray heads throughout the machine to ensure thorough cleaning without disassembling the unit.
What is the evaporation capacity of the LPG150 model?
The LPG150 model has a standard evaporation ability of 150 Kg/H.
What safety features are included for dust explosion risks?
The machine includes an explosion-proof system with automatic relief plates and channels on top of the drying tower.
Does the material stick to the inner walls?
The unit features a wall cooling device (keeping walls under 80℃) and an air hammer system to prevent material from softening or adsorbing on the walls.
Which control system is used?
The equipment adopts a high-end PLC control and touch screen system to monitor and display all processing data in real-time.
