12-15kw Growatt Carton 425/387/178mm China Solar Hybrid Inverter with CE Mod 10-15ktl3-X
Product Description
📋 Basic Information
Model NO.
MOD 10-15KTL3-X
Nature of Source
Active Inverter
Phase
Three Phase
Output Power
12-15kw
Certification
CE, ROHS, TUV, VDE
Type
DC/AC Inverters
Power Source
Solar Power, Wind Power
Wave String
Sine Wave Inverter
Protection Degree
IP66
Origin
China
HS Code
8504403090
📦 Product Description
⚙️ Technical Specifications
| Datasheet | MOD 10KTL3-X | MOD 11KTL3-X | MOD 12KTL3-X | MOD 13KTL3-X | MOD 15KTL3-X |
|---|---|---|---|---|---|
| Input data (DC) | |||||
| Max. PV power | 15000W | 16500W | 18000W | 19500W | 22500W |
| Max. DC voltage | 1100V | ||||
| MPPT voltage range | 140V-1000V | ||||
| No. of MPP trackers | 2 | ||||
| Output data (AC) | |||||
| AC nominal power | 10000W | 11000W | 12000W | 13000W | 15000W |
| Max. AC apparent power | 11000VA | 12100VA | 13200VA | 14300VA | 16500VA |
| Max. output current | 16.7A | 18.3A | 20A | 21.7A | 25A |
| Efficiency & Protection | |||||
| MAX. efficiency | 98.6% | ||||
| European efficiency | 98.1% | 98.1% | 98.2% | 98.2% | 98.2% |
| Protection degree | IP66 | ||||

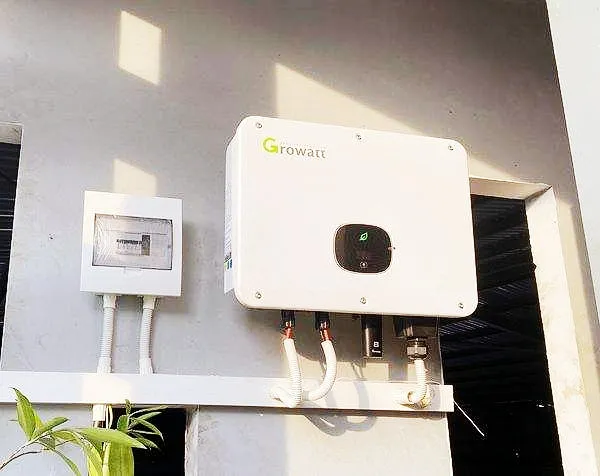

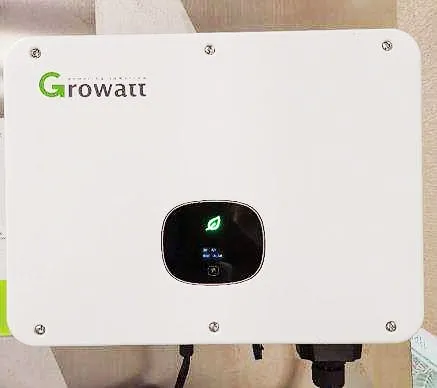

🔍 Product Details

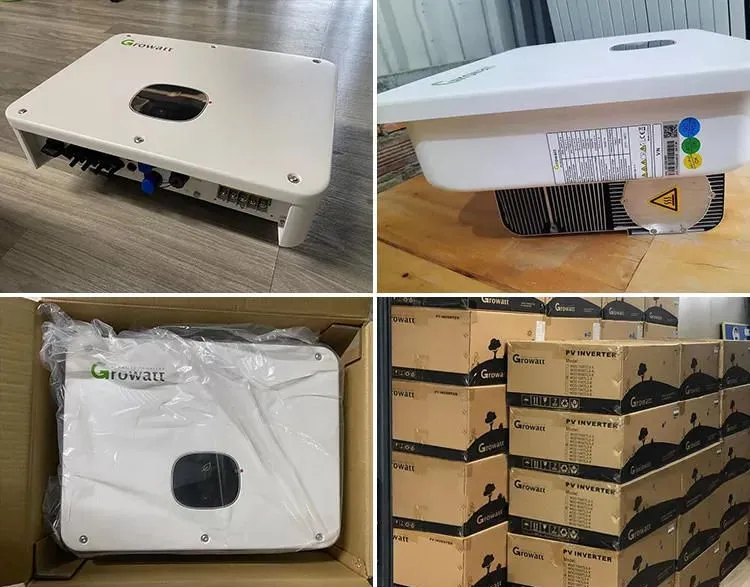

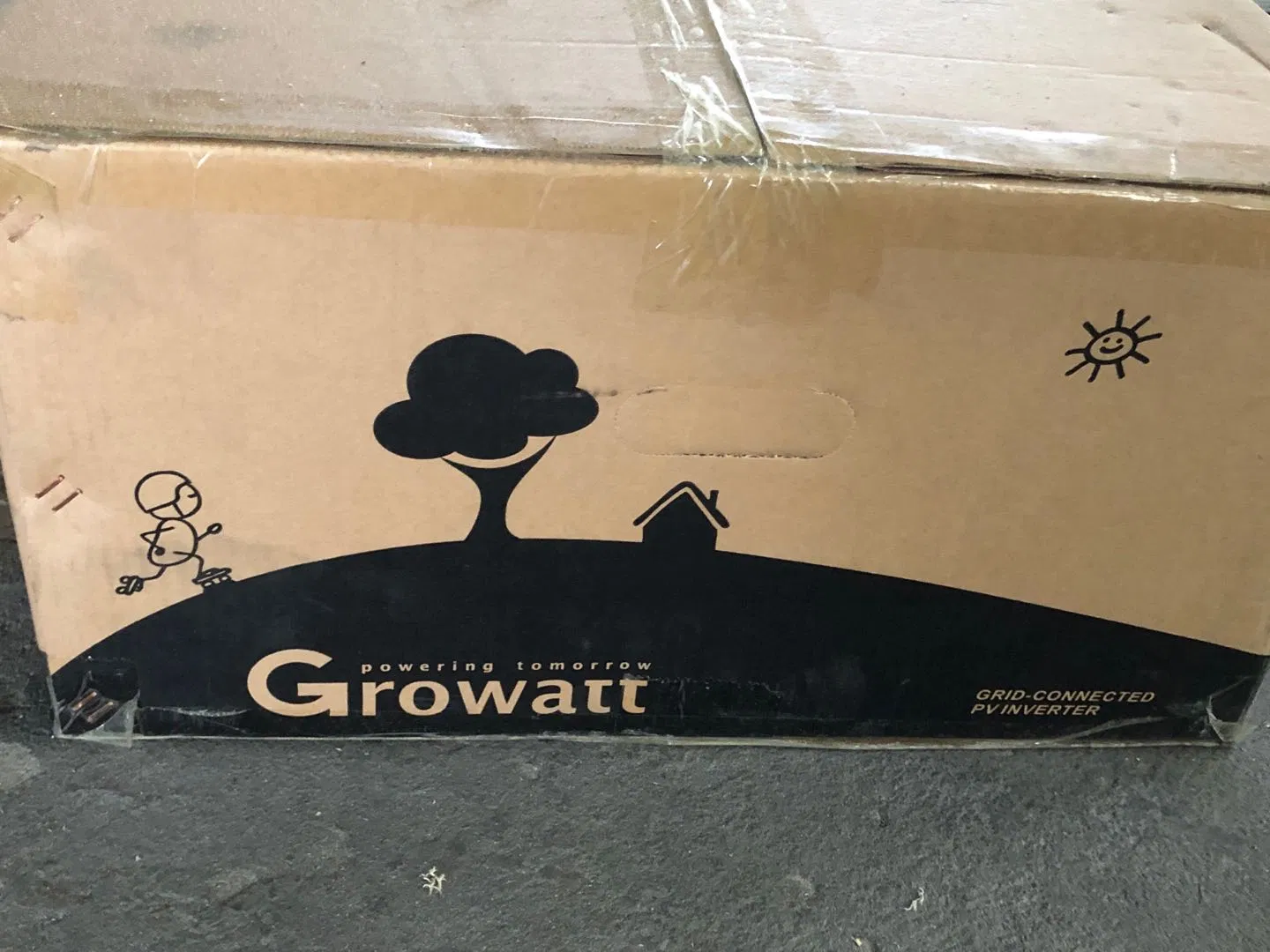

🚢 Packaging & Shipping
❓ Frequently Asked Questions
What is the maximum efficiency of this three-phase inverter?
The series features a high maximum efficiency of up to 98.6%, with a European efficiency rating ranging between 98.1% and 98.2% depending on the specific model.
Can this inverter be installed outdoors?
Yes, the product is designed with an IP66 protection degree, making it highly resistant to dust and water, suitable for various outdoor environments.
What type of monitoring interfaces are available?
The system supports multiple monitoring options including USB, RS485, and optional WIFI, GPRS, LAN, and RF interfaces. Users can monitor performance via an OLED+LED display or a dedicated APP.
What safety protections are integrated into the device?
The inverter includes comprehensive protection features such as DC reverse polarity protection, DC switch, AC/DC Type II surge protection, insulation resistance monitoring, AC short-circuit protection, and anti-islanding protection.
What is the DC input voltage range?
The maximum DC voltage is 1100V, with a startup voltage of 160V. The MPPT voltage range operates efficiently between 140V and 1000V.
Is there a warranty provided for these inverters?
Standard models come with a 5-year warranty, and there is an option to extend the warranty to 10 years to meet different project requirements.
