425/387/178mm RoHS Approved Carton China Inverter Air Conditioner Growatt Mod 10-15ktl3-X
Product Description
📋
Basic Information
Model NO.MOD 10-15KTL3-X
Nature of SourceActive Inverter
PhaseThree
Output Power12-15kw
CertificationCE, ROHS, TUV, VDE
TypeDC/AC Inverters
Power SourceSolar Power, Wind Power
Nature of WaveSine Wave Inverter
Transport PackageCarton
Specification425/387/178mm
HS Code8504403090
Capacity10000PCS Per Month
📦
Product Description
📊
Technical Specifications
| Datasheet | MOD 10KTL3-X | MOD 11KTL3-X | MOD 12KTL3-X | MOD 13KTL3-X | MOD 15KTL3-X |
|---|---|---|---|---|---|
| Input data (DC) | |||||
| Max. PV power (STC) | 15000W | 16500W | 18000W | 19500W | 22500W |
| Max. DC voltage | 1100V | ||||
| Start voltage | 160V | ||||
| Nominal voltage | 580V | ||||
| MPPT voltage range | 140V-1000V | ||||
| No. of MPP trackers | 2 | ||||
| PV strings per tracker | 1 | 1 | 1/2 | 1/2 | 1/2 |
| Max. input current | 13A | 13A | 13/26A | 13/26A | 13/26A |
| Output data (AC) | |||||
| AC nominal power | 10000W | 11000W | 12000W | 13000W | 15000W |
| Max. AC apparent power | 11000VA | 12100VA | 13200VA | 14300VA | 16500VA |
| Nominal AC voltage | 220V/380V, 230V/400V (340-440V) | ||||
| Max. output current | 16.7A | 18.3A | 20A | 21.7A | 25A |
| Efficiency | |||||
| MAX. efficiency | 98.6% | ||||
| European efficiency | 98.1% | 98.1% | 98.2% | 98.2% | 98.2% |
| General Data | |||||
| Dimensions (W/H/D) | 425/387/178mm | ||||
| Weight | 14kg | 14kg | 16kg | 16kg | 16kg |
| Protection degree | IP66 | ||||
🔍

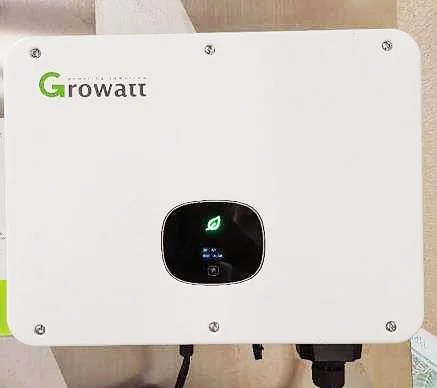

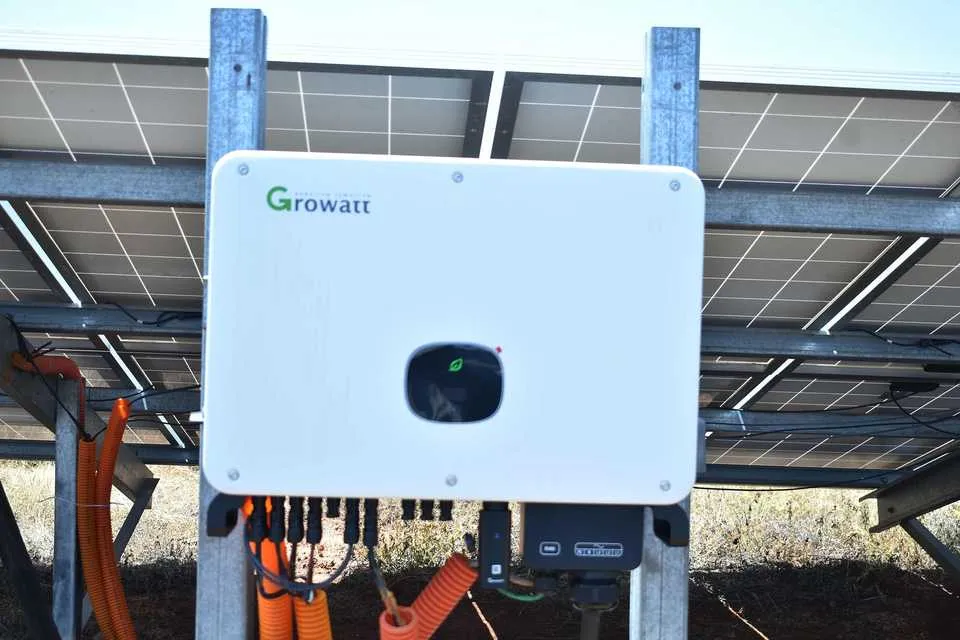

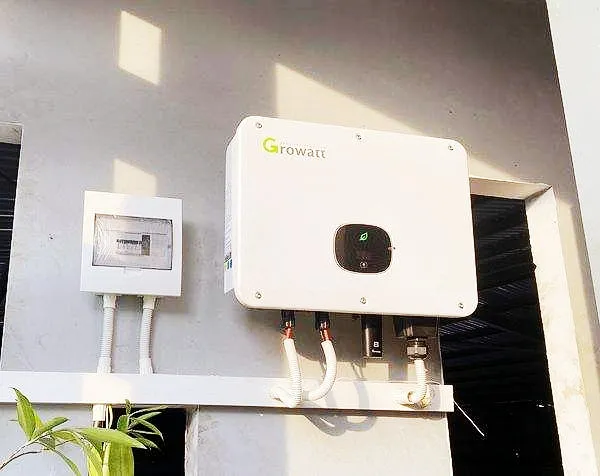

Product Details
🚚

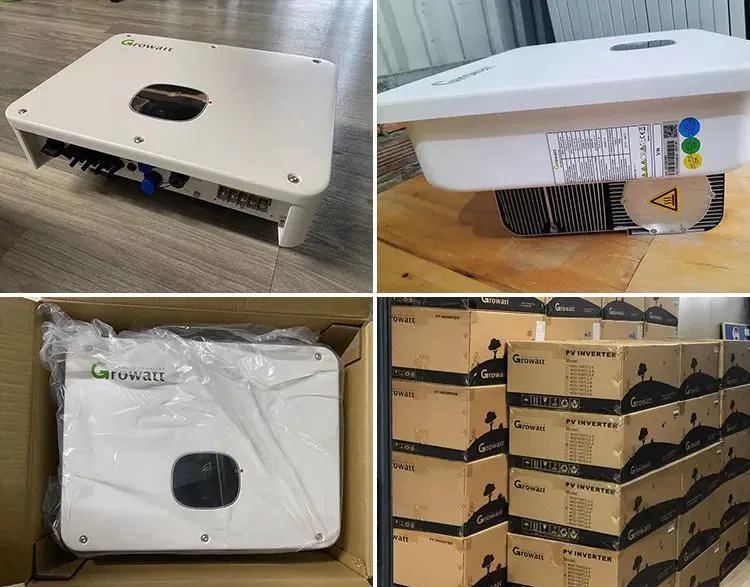

Packaging & Shipping
❓
Frequently Asked Questions
What is the maximum efficiency of the MOD series inverters?
The MOD series achieves a maximum efficiency of 98.6%, ensuring minimal energy loss during the DC to AC conversion process.

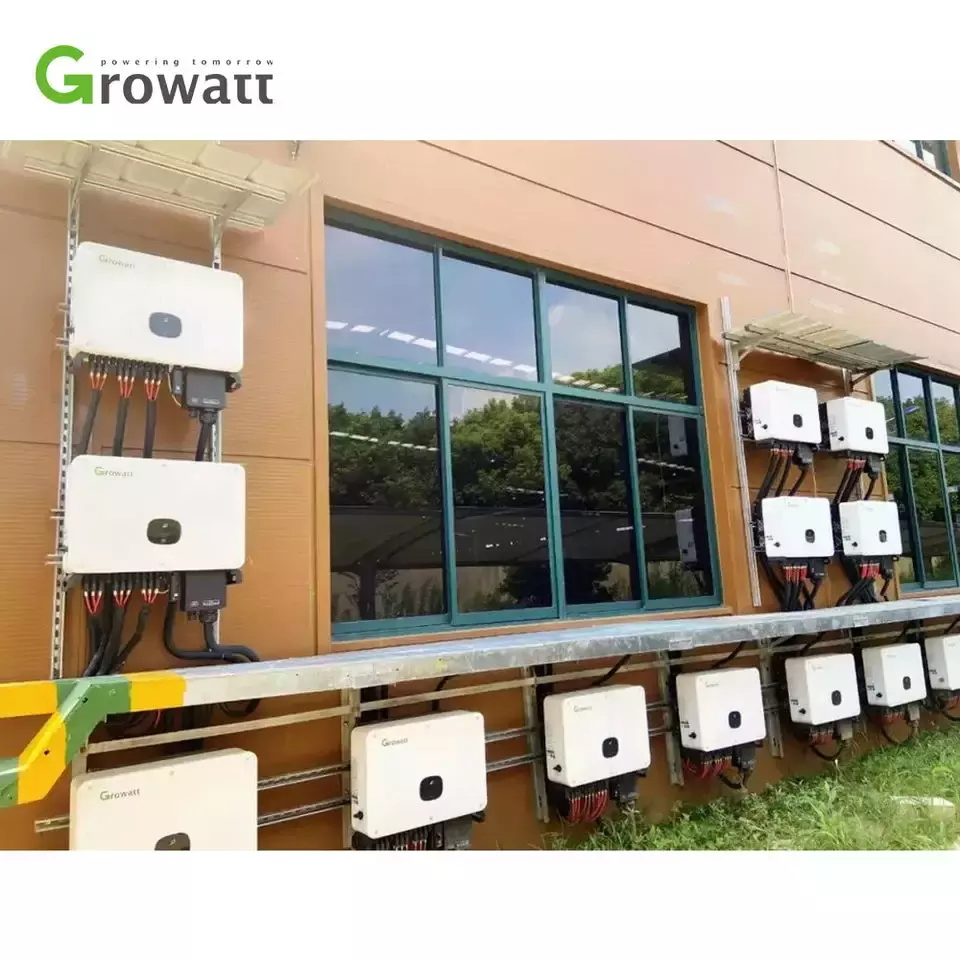

Are these inverters suitable for outdoor installation?
Yes, they come with an IP66 protection degree, making them highly resistant to dust and high-pressure water jets, ideal for outdoor environments.

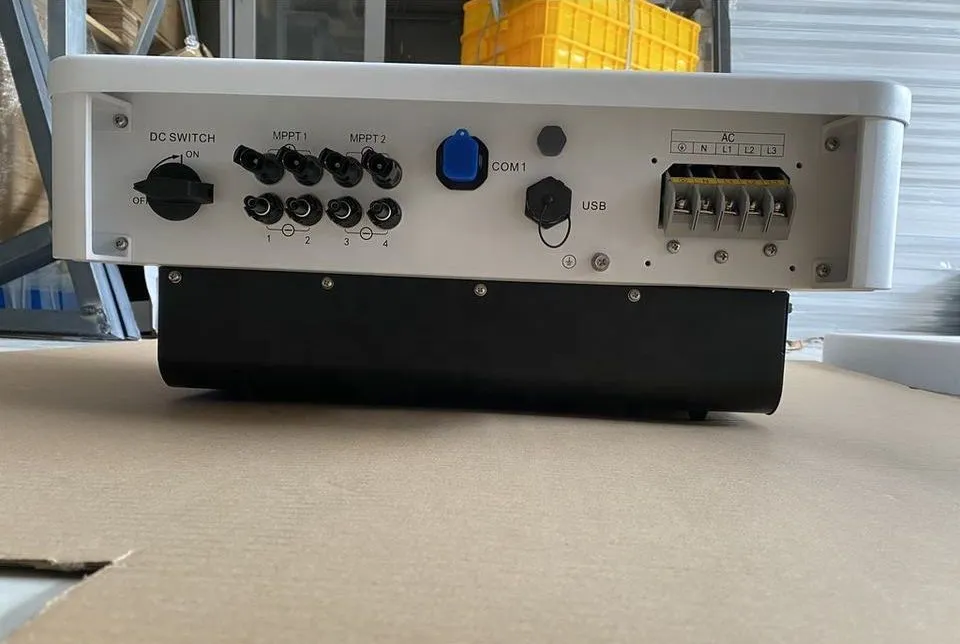

What kind of monitoring interfaces are supported?
The system supports USB and RS485 as standard, with optional interfaces for WIFI, GPRS, LAN, and RF for remote monitoring via apps.
Does the inverter include safety protection features?
Absolutely. It includes DC reverse polarity protection, AC/DC surge protection (Type II), insulation resistance monitoring, AC short-circuit protection, and anti-islanding protection.
What is the operating temperature range for these units?
The inverters are designed to operate reliably in temperatures ranging from -25°C to +60°C.
What cooling method is used in the MOD 10-15KTL3-X?
These units utilize natural convection cooling, which reduces noise and increases reliability by eliminating mechanical fan components.
